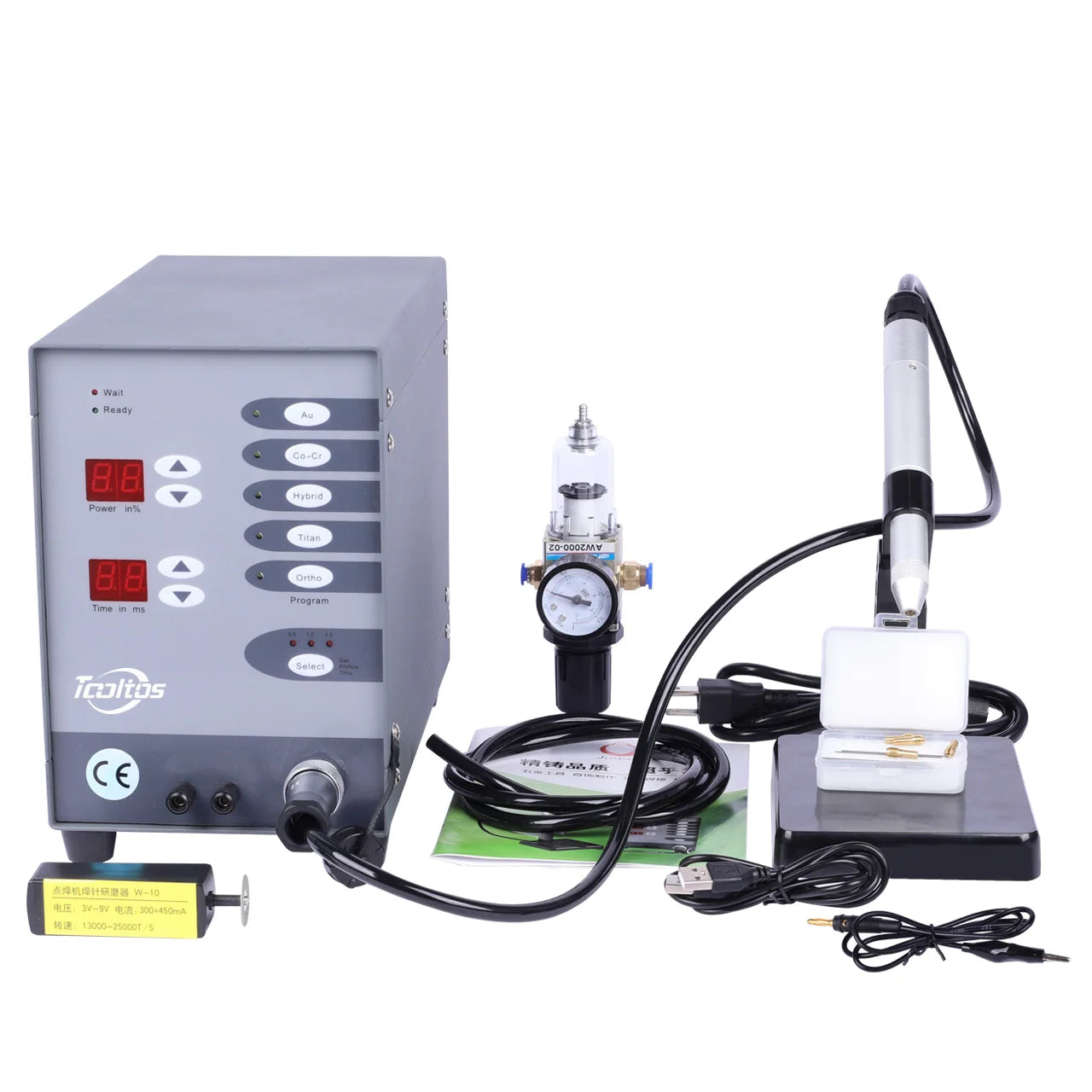

Experience precise, programmable welding for jewelry and small metal parts with this Automatic CNC Pulse Argon Arc TIG Jewelry Spot Welder.
Five preset modes let you weld quickly and consistently across gold (Au), cobalt-chromium (Co-Cr), hybrid alloys, titanium (Ti), and orthodontic work.

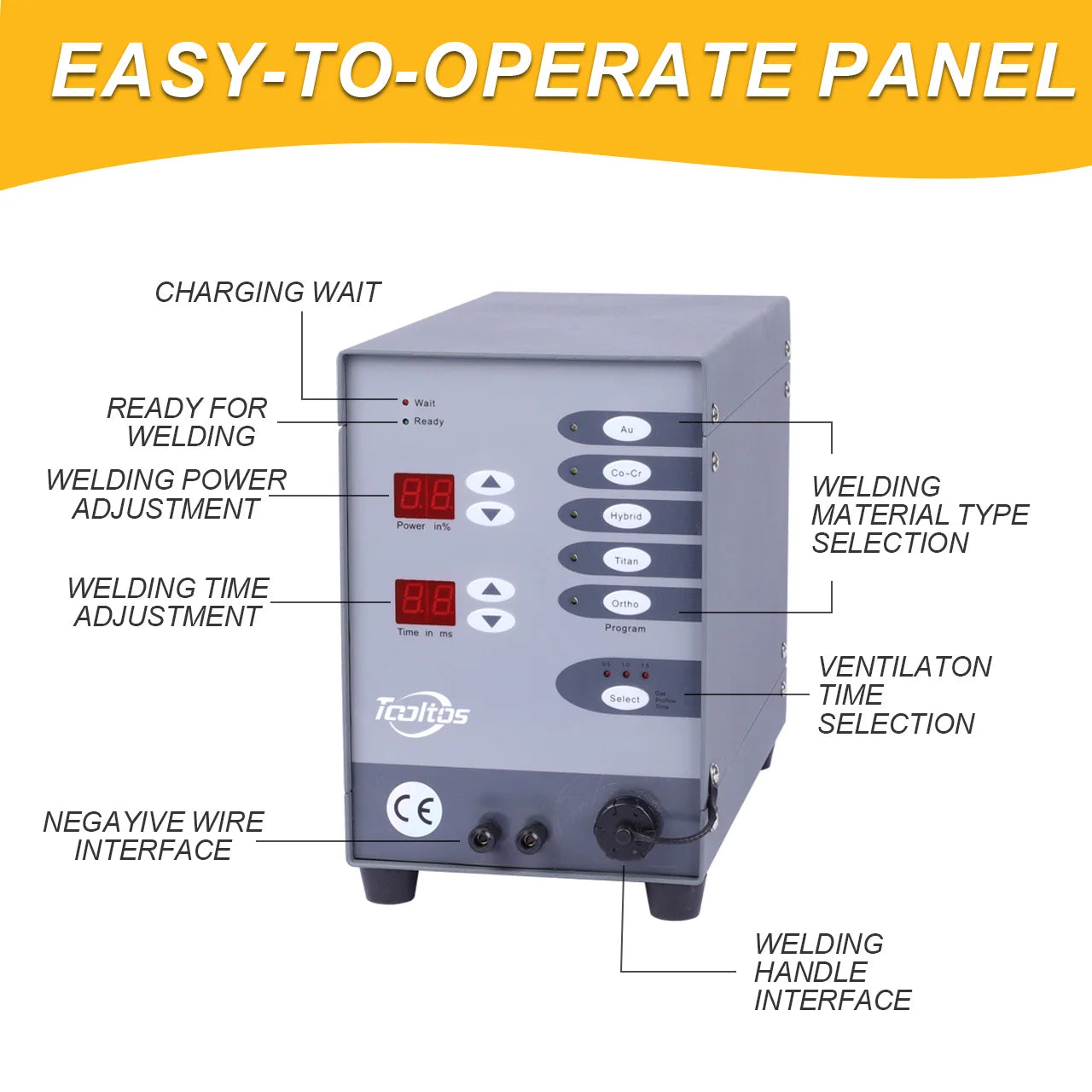

Fine-tune your results with adjustable power, pulse, and weld time (3–30 ms) to control penetration and joint diameter; an automatic quadrature mode activates after 5 minutes to protect the workpiece.

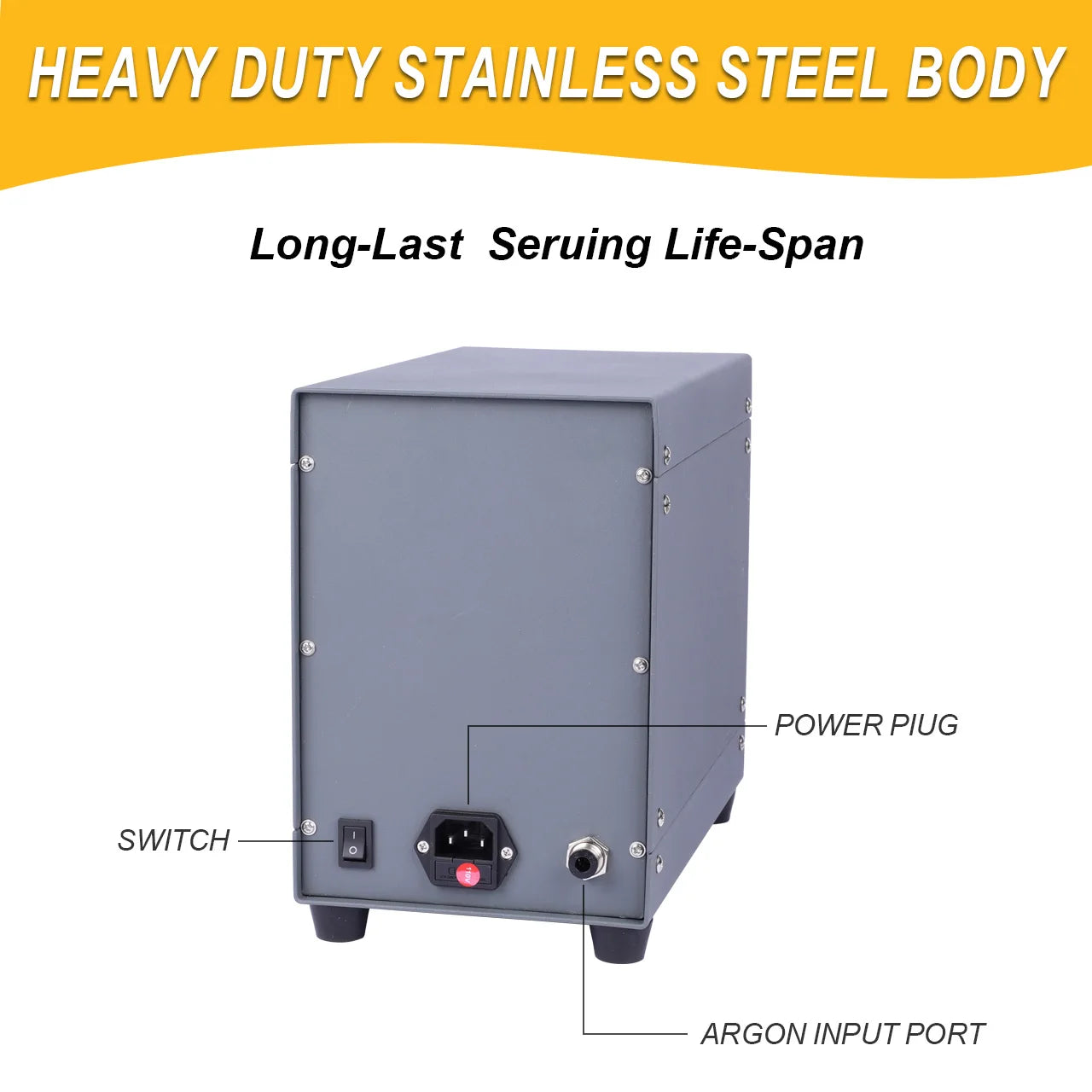

Argon gas is optional—connect via the pressure gauge for enhanced welds, or operate without argon; typical usage recommends 5 L/min when used.

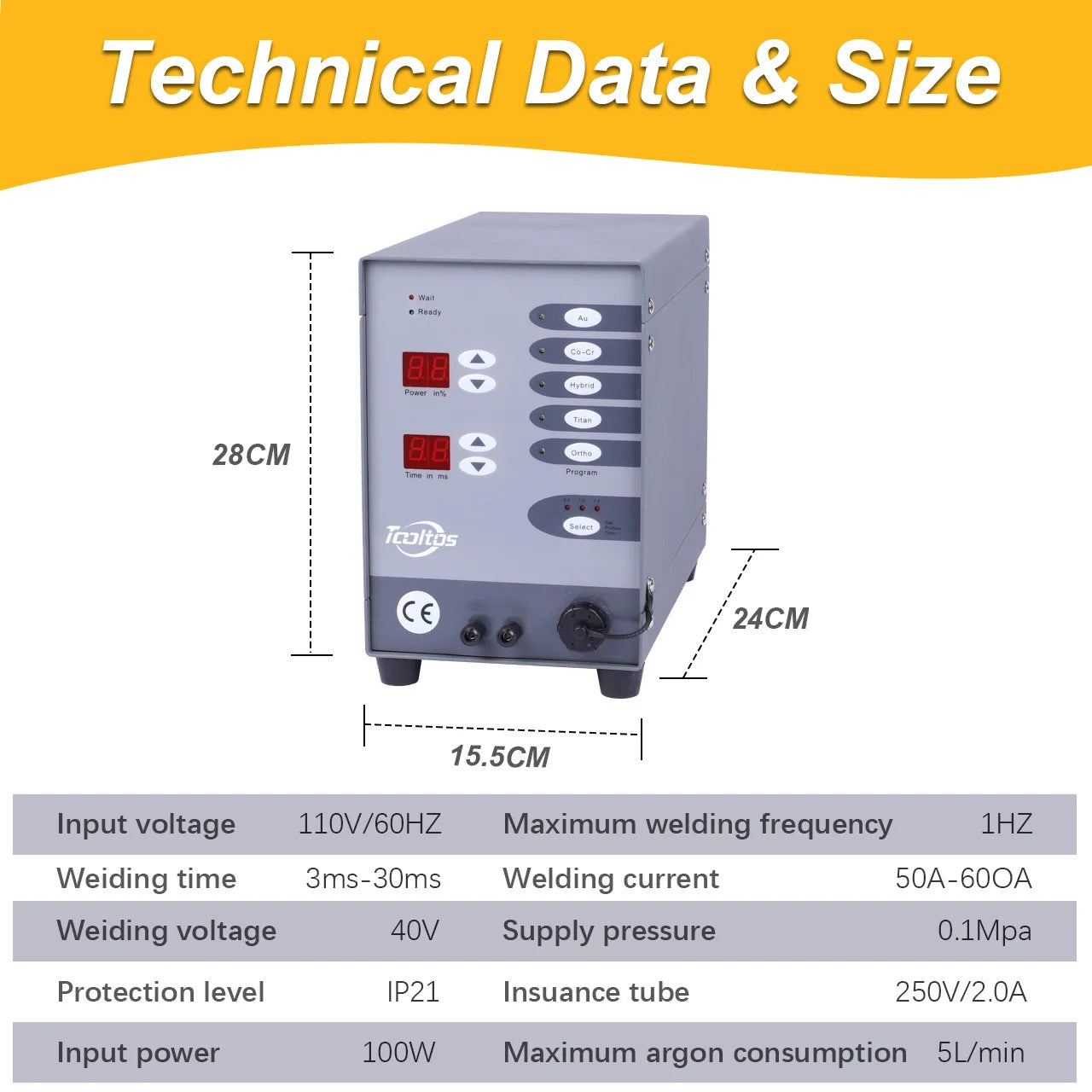

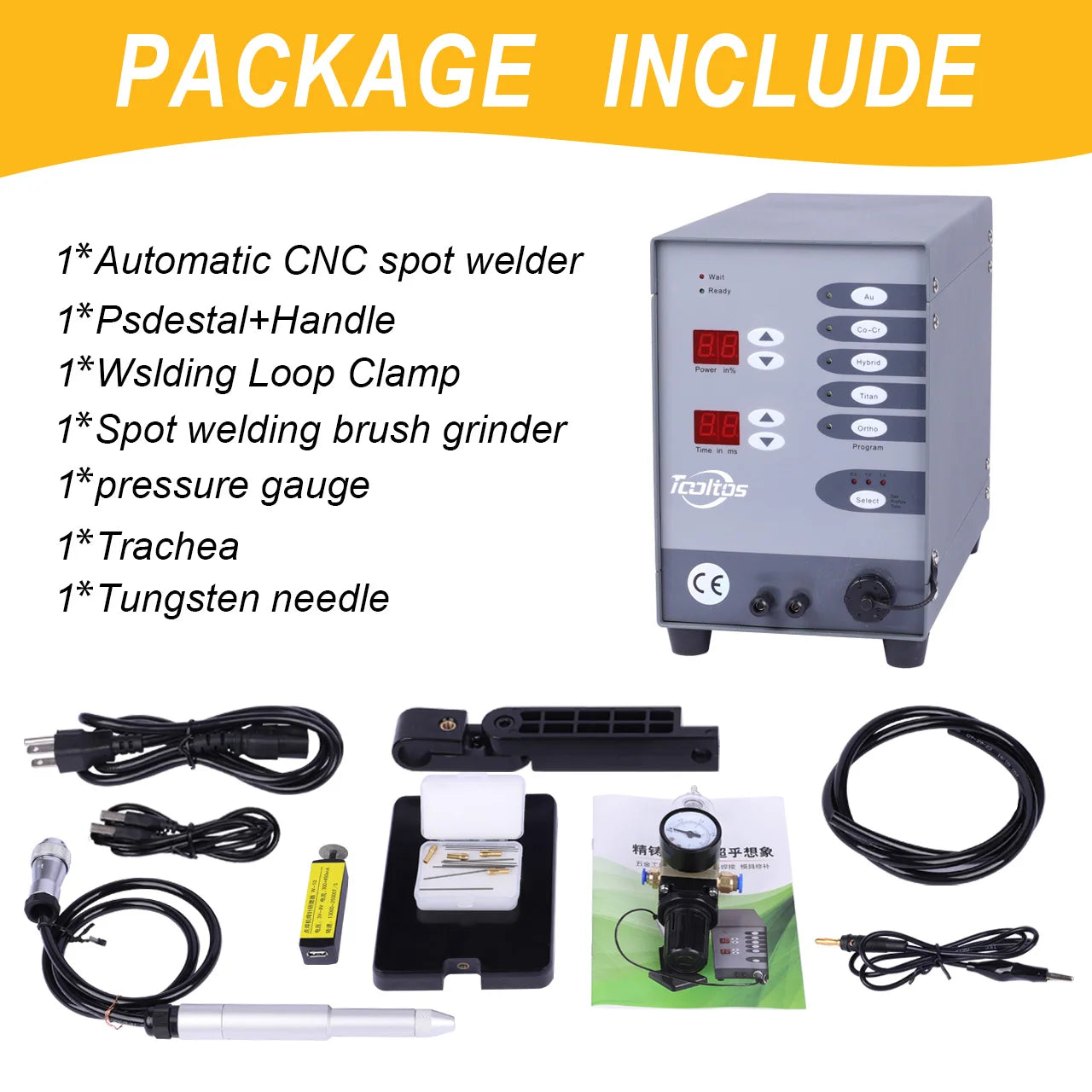

Compact 220V/110V unit (60/50 Hz, 100 W, IP21) with weld specs of 40 V, 50–150 A, 3–30 ms, max 5 mm, and 1 Hz; weighs 8.0 kg and ships with pedestal, clamp, tungsten grinder, pressure gauge, 2 m trachea, and tungsten needle kit. Suitable for jewelry, dental welding, pure gold, cobalt-chromium alloys, titanium, orthodontics, and more.
